Marantz 3800 Vintage Stereo Preamplifier

Marantz 3800 stereo preamplifier, offered by Vinyl Vogue after control cleaning and functional testing. This 1970s control console provides phono and line-level source selection, tape facilities, separate left/right tone controls and built-in Dolby processing.

Condition

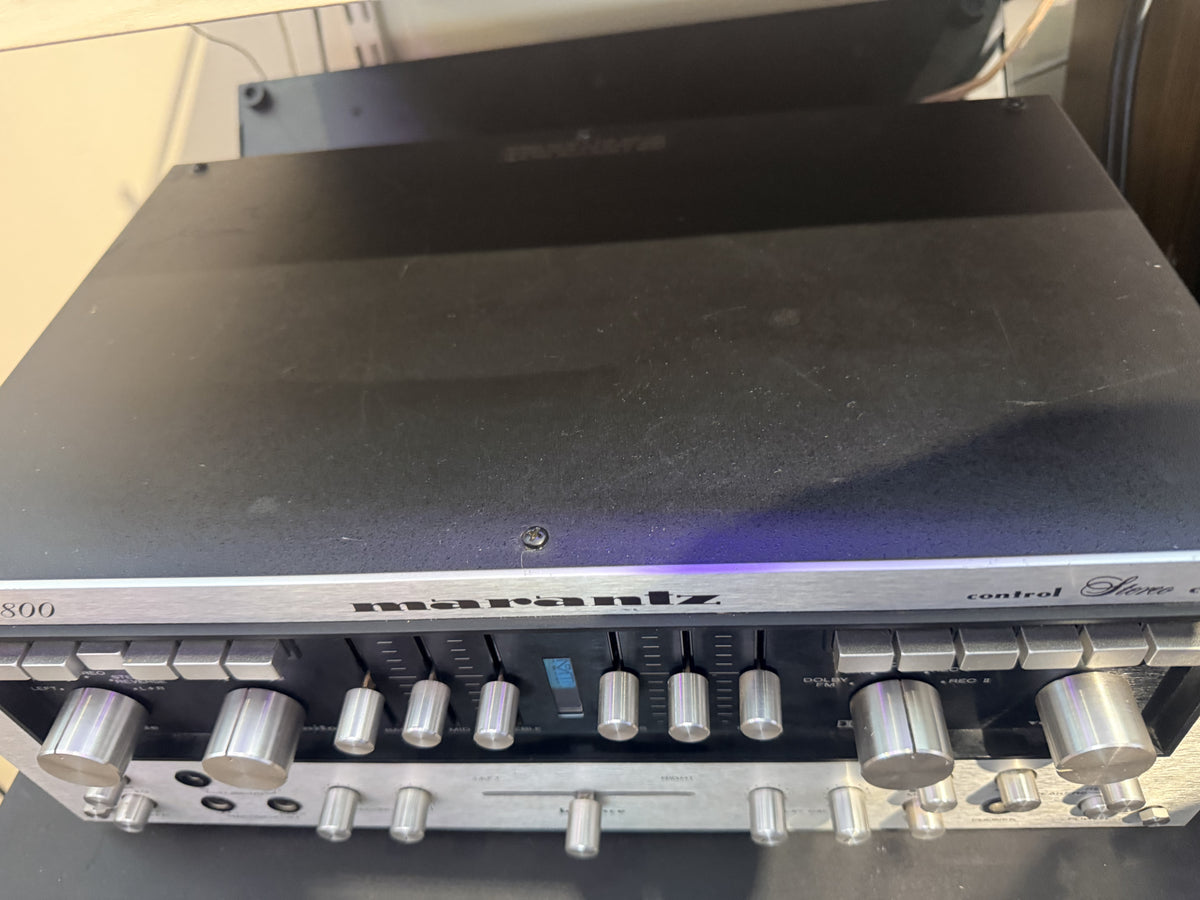

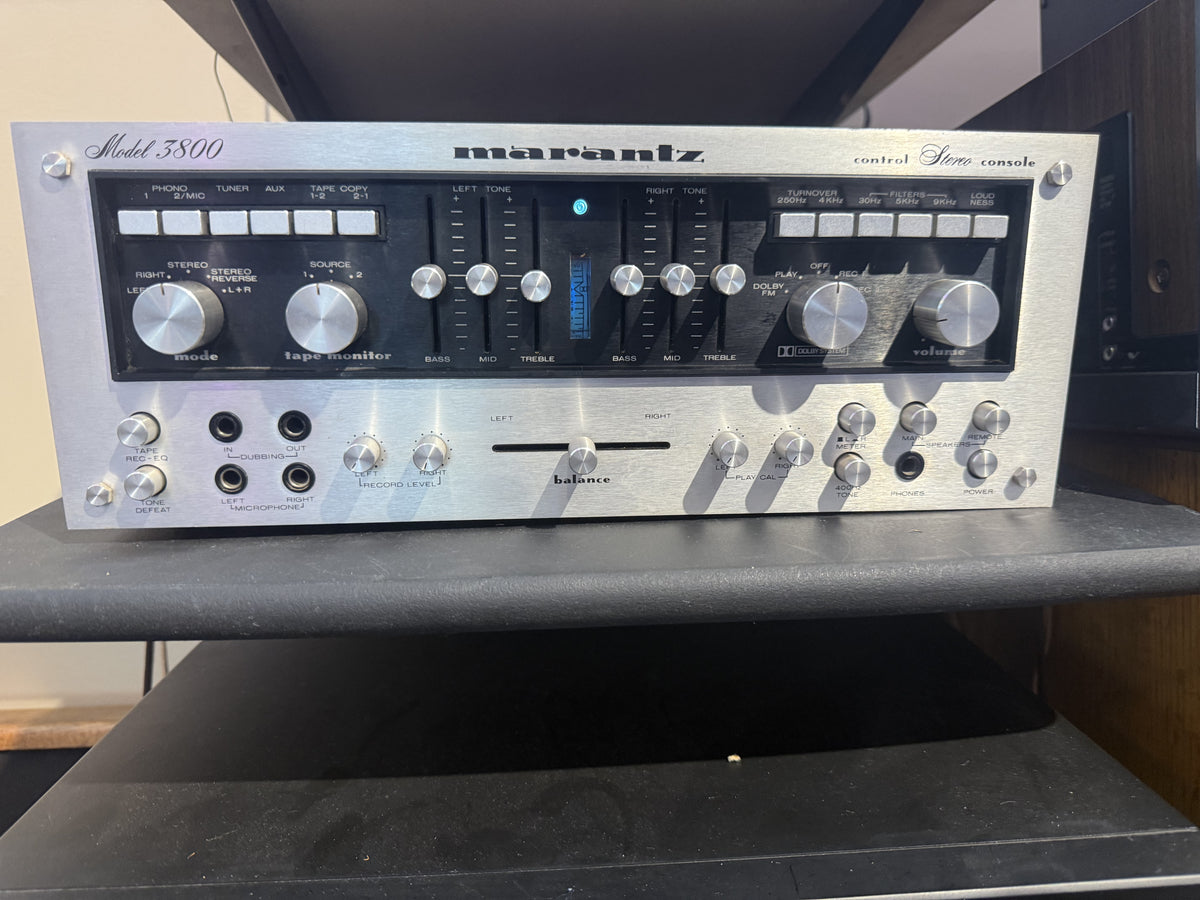

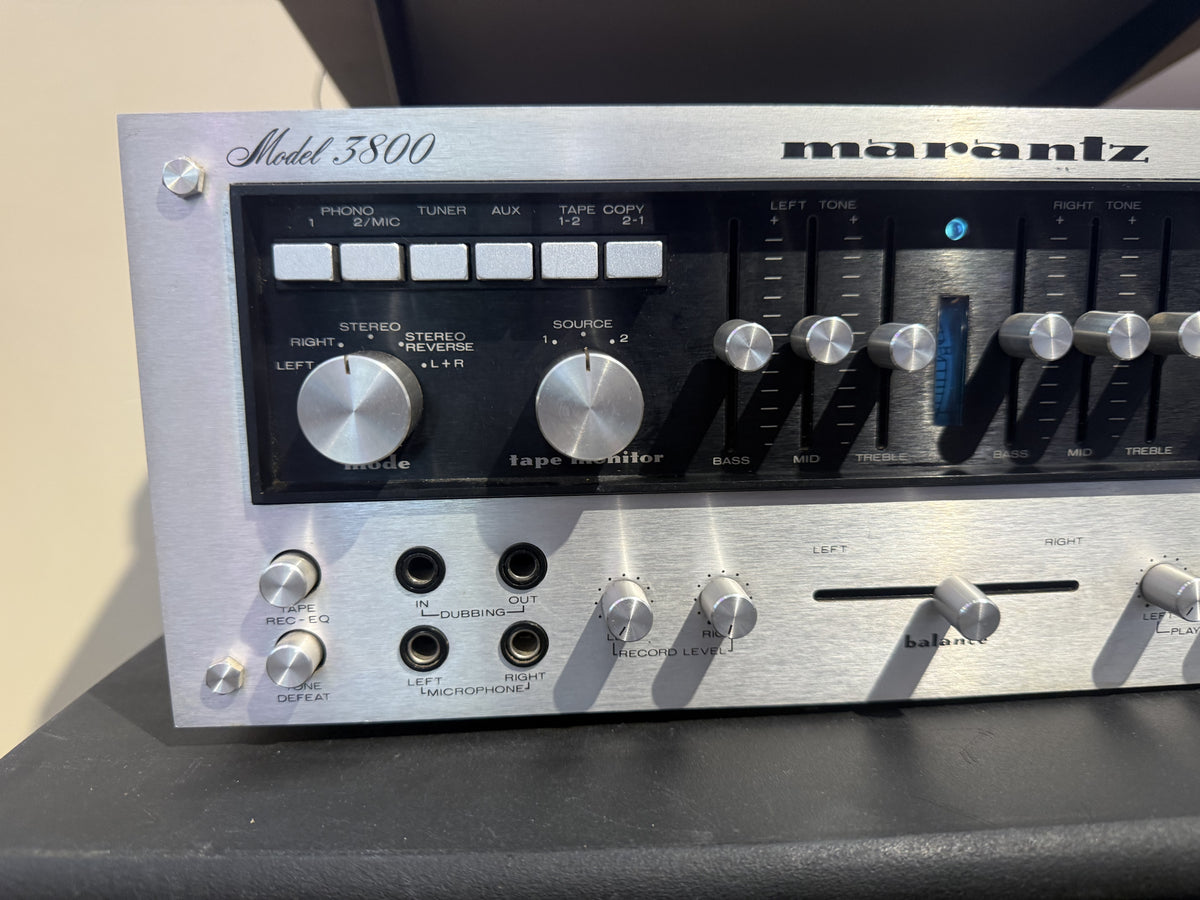

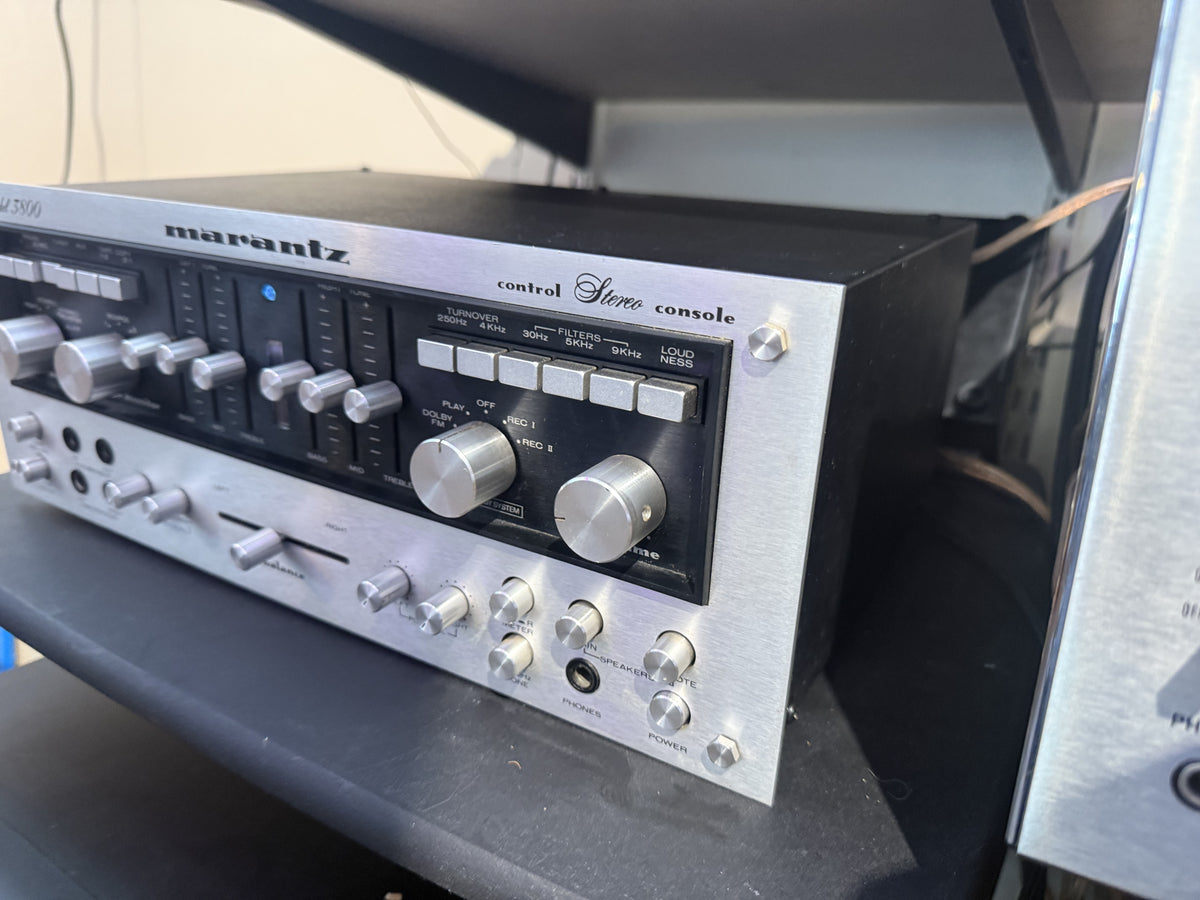

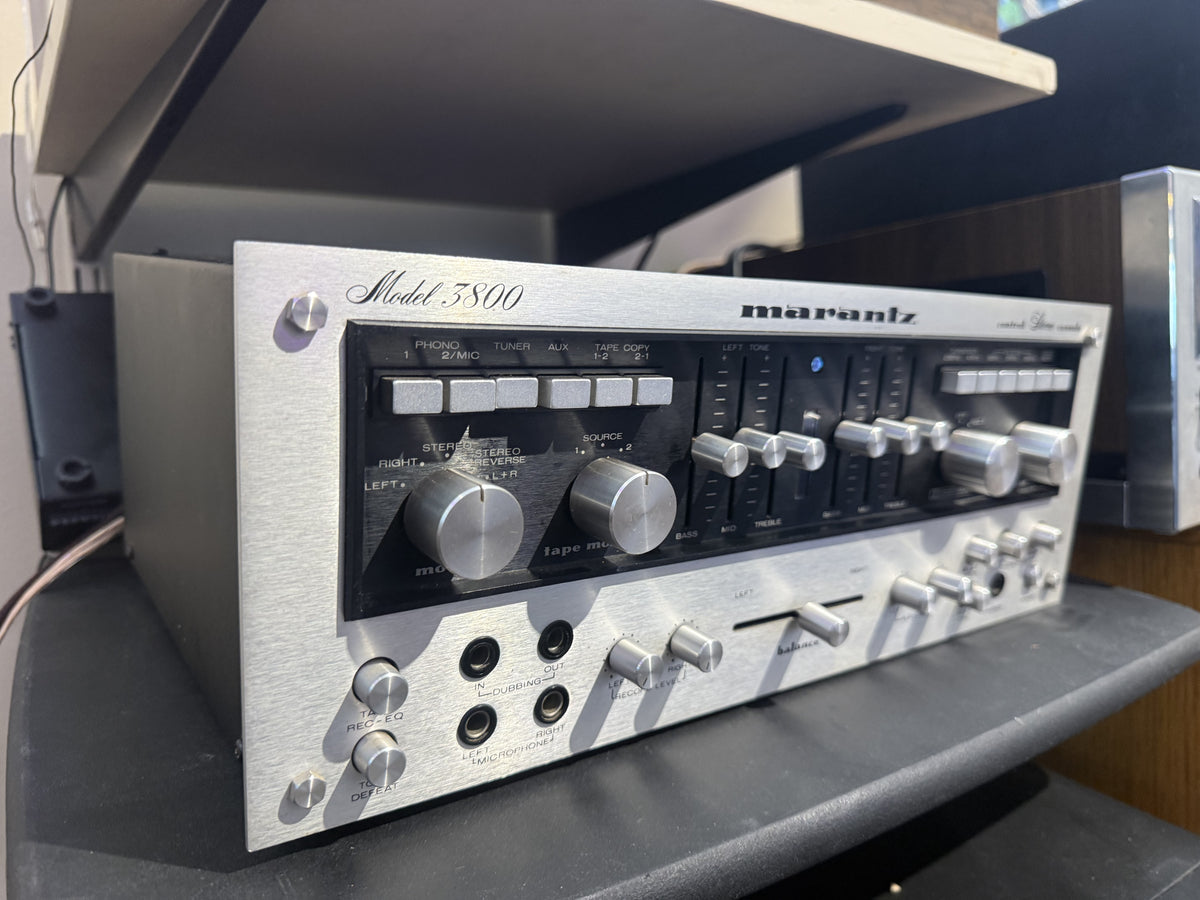

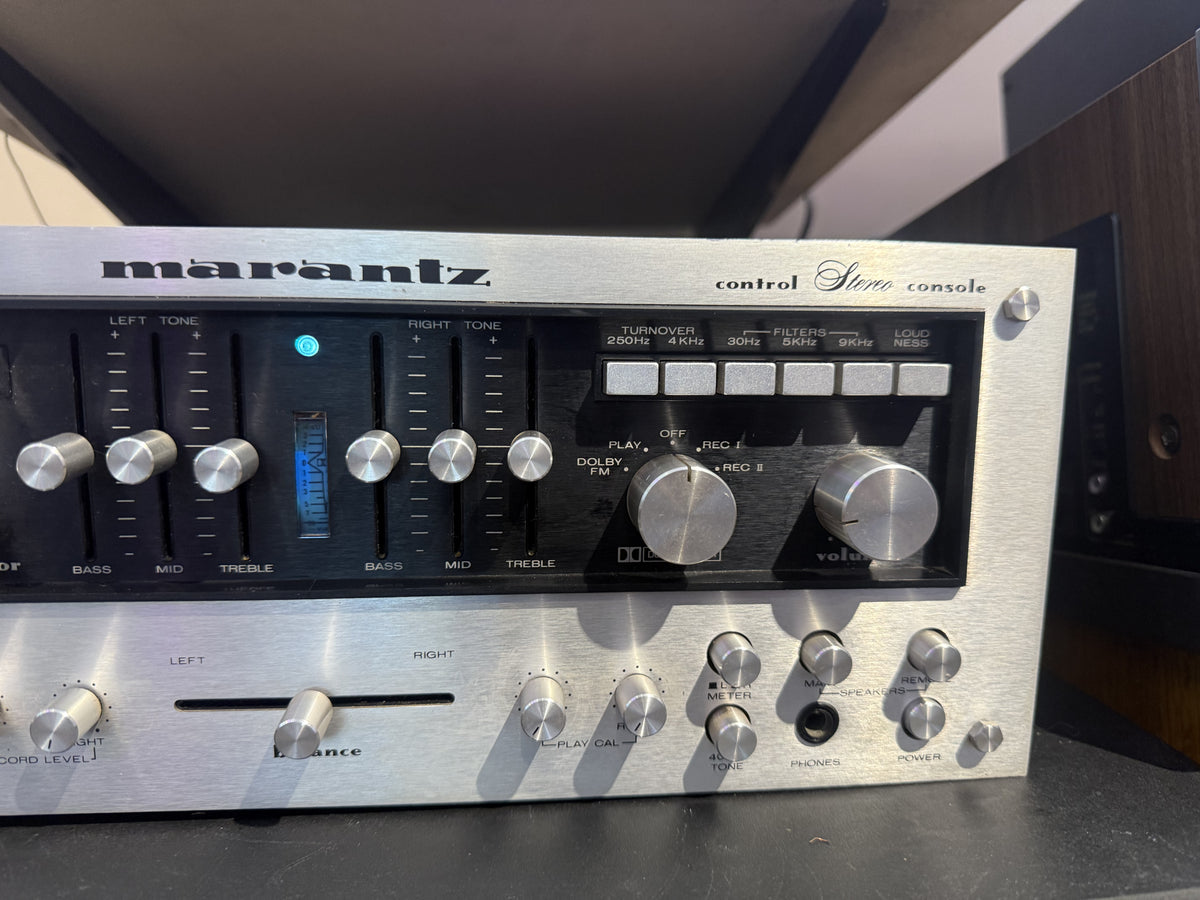

Used vintage condition. The supplied photographs show light surface and handling marks, with visible marks or dust on the top cover. The silver and black front panel, controls and illuminated indicator are shown in the original photographs. No cosmetic restoration is claimed.

Service and testing

Vinyl Vogue cleaned the controls and tested the unit. The service notes describe it as functioning; the final checklist marks inputs and controls verified for both channels. No capacitor replacement or other component replacement is documented for this preamplifier.

The record does not include a separate quantitative check of Dolby calibration, every tape-routing mode, noise or distortion. It is offered as a tested, functioning vintage preamplifier.

Published specifications and features

• Stereo solid-state preamplifier/control console; requires a separate power amplifier.
• Phono, tuner and auxiliary source selection, tape monitoring and dubbing facilities.
• Separate left/right bass, midrange and treble controls, plus filters and tone defeat.
• Built-in Dolby encode/decode facilities and 400 Hz test tone.
• Service-manual rated preamplifier output: 3 V RMS; maximum output: 9 V RMS.
• High-level frequency response: ±0.25 dB from 10 Hz to 20 kHz under the service manual's stated load conditions.

Published specifications describe the original model and are not new measurements of this individual unit.

Included, shipping and pickup

The component shown is the item offered. Other audio equipment and shop items in the background are not part of this listing. No additional accessories are promised.

Local pickup is available at Vinyl Vogue in Ellsworth, Maine. Contact the shop to arrange a time to inspect the unit. UPS Ground shipping to the contiguous United States is calculated at checkout from the package dimensions, shipment weight and delivery address, with a 5% handling adjustment. Shipments will be insured for the purchase value and require a signature. A street address is required; UPS does not deliver to PO boxes.

If purchasing both Marantz components together, contact the shop before checkout so we can quote the two separately packed boxes and send a combined invoice.

The description distinguishes documented service and testing from original factory specifications. Please review the photographs and ask about any detail important to your system before purchasing.
